Product Description
Vulcan Natural Gas Double Deck Full Size Convection Ovens VC4GD-10
Removed from a local school. Installed new temp probes and controllers.
Tested and working fine
Description
Vulcan-Hart's Convection Oven allows hot air to circulate throughout the oven to cook or bake your food more evenly than a non-convection oven. The solid state temperature controls adjust from 150° to 500°F. It is furnished with a two-speed 1/2 horsepower oven blower-motor. Its burner can create 44,000 BTUs an hour. The oven has a 3/4" rear gas connection with combination gas pressure regulator and safety solenoid system. The single deck oven's top, sides and front are made of stainless steel, and the independently-operated, stainless steel doors have double pane windows. The interior is porcelain enamel on steel and measures 22 1/8"L x 29"W x 20"H.
The non-sag insulation is applied to the top, rear, sides, bottom and doors. This oven has eleven nickel-plated rack position guides with positive rack stops for the five nickel-plated oven racks. The five oven racks measure 28 1/4" x 20 1/2". This oven is 120V/60Hz/1 phase (9 amps). It features an electronic spark igniter, 60-minute timer with audible alarm and oven cool switch for rapid cool-down.
Product Details:
Stainless steel front, top and sides

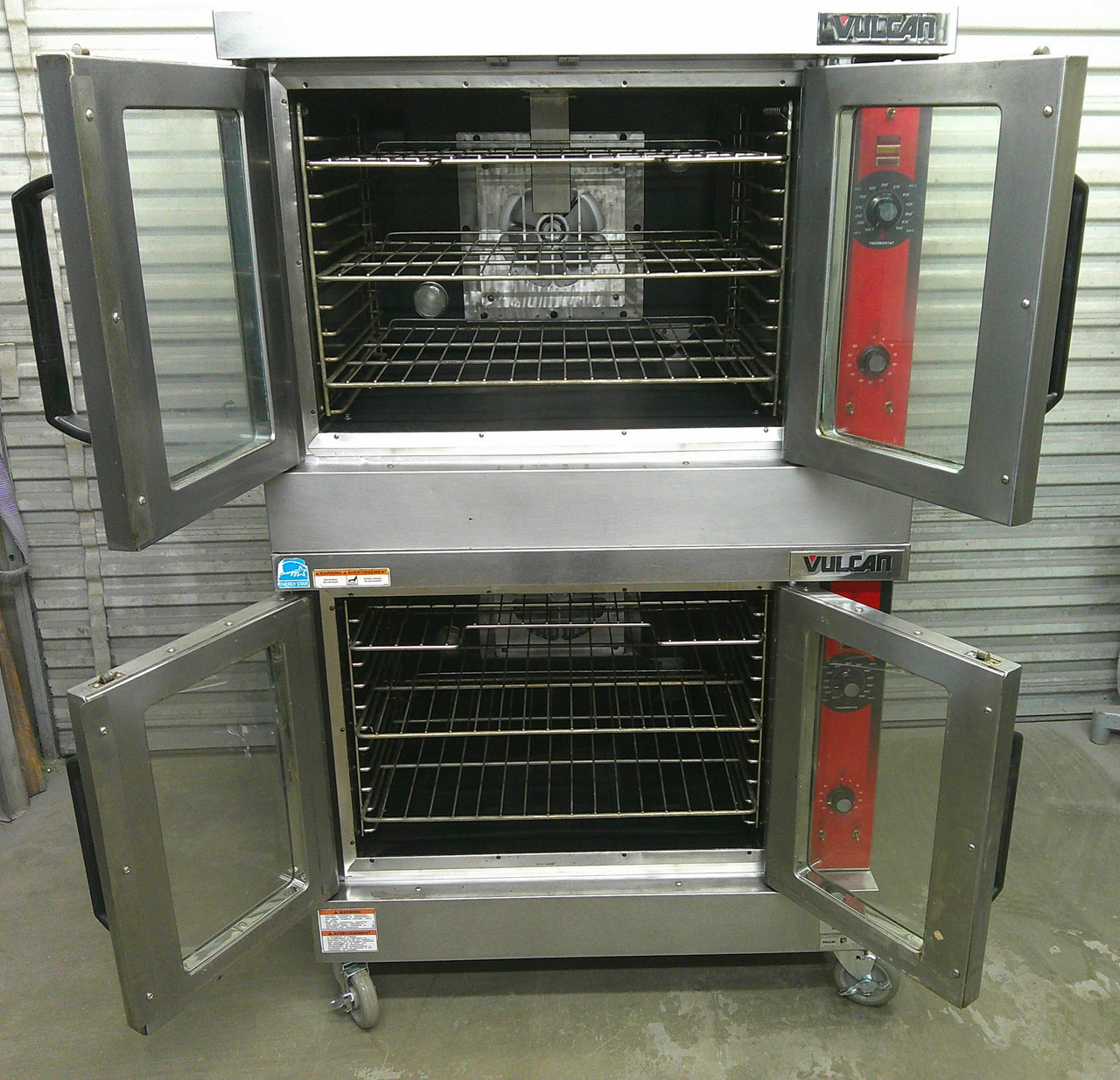

(5) nickel-plated oven racks with (11) rack positions make more room for products
Independently-operated stainless steel doors with double pane windows to keep track of cooking process

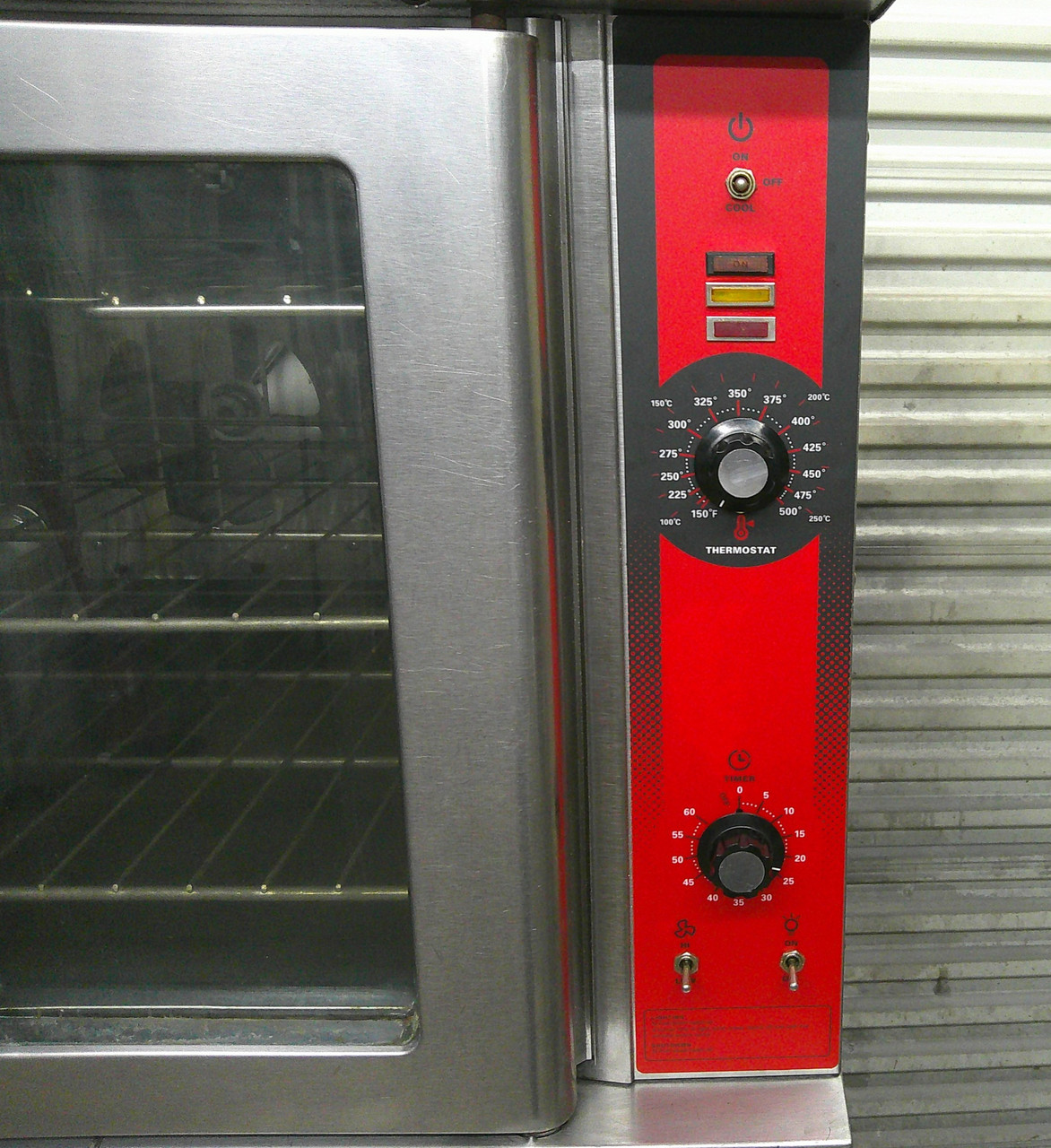

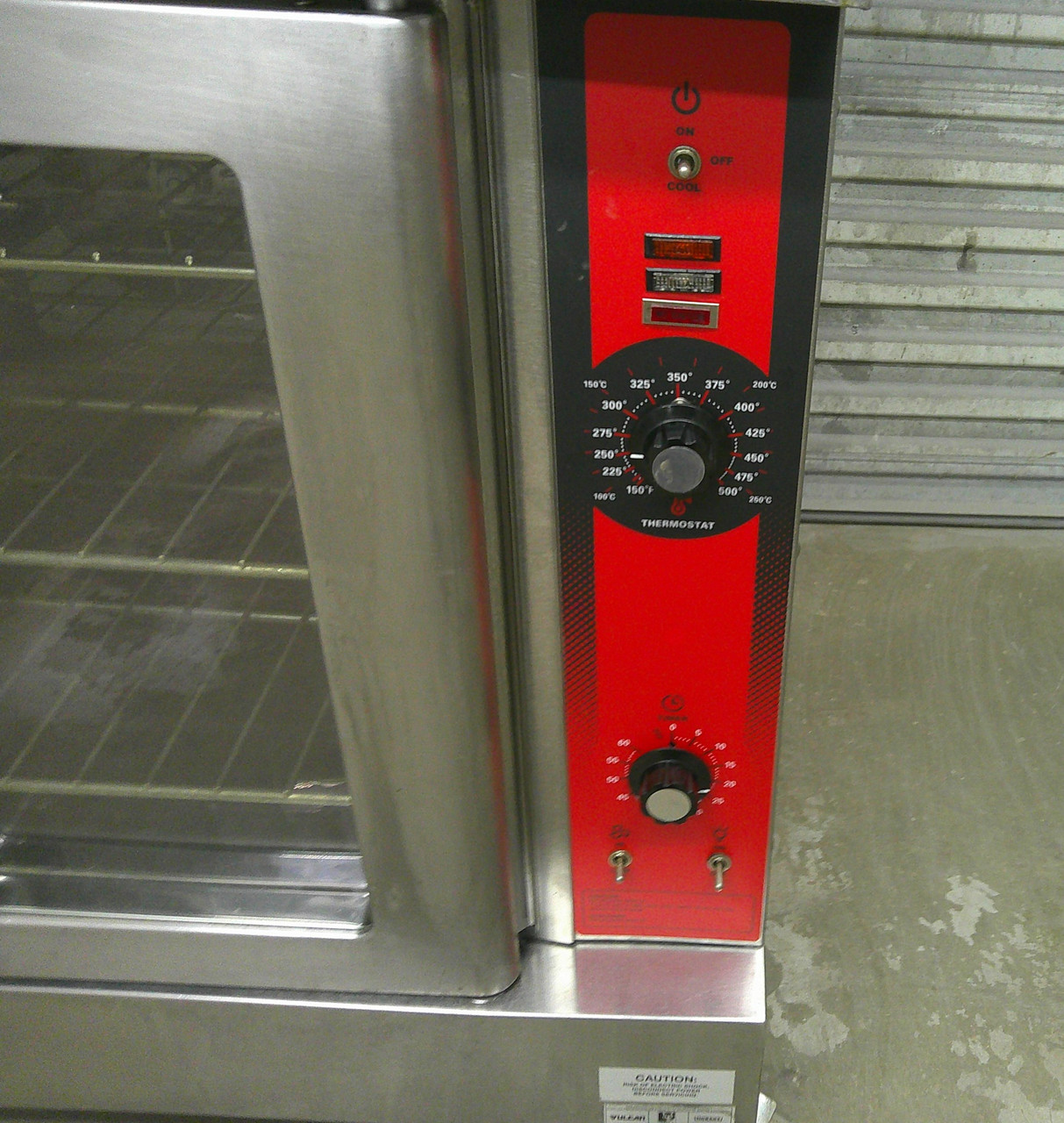

Solid state temperature control adjusts from 150 to 500 degrees
60-min. timer with audible alarm
Burners ignites at 50,000 BTUs per hour
1/2-HP 2-speed oven blower motor
Oven cool switch for fast cool down
Oven interior contains porcelain enamel
3/4-in. rear gas connection with combination gas pressure regulator and safety solenoid system
Electronic spark igniter
Oven/steam accessory kit includes stainless steel marine edge top
Stainless steel drip pan and rack hanger
Stainless steel open stand with adjustable rack supports, shelf and either adjustable feet or casters
Stainless steel drip pan included
Flexible gas hose with quick disconnect and restraining device
120 V/60 hz/1-ph
Ser# Top Oven 48-1463326 Bottom Oven 48-1463299
Overall Dimensions: 40-1/4 in. W x 41-1/8-in. D x 92 in. H
NSF, CSA and ENERGY STAR Certified
